SECTION 7: Drone Image Examples

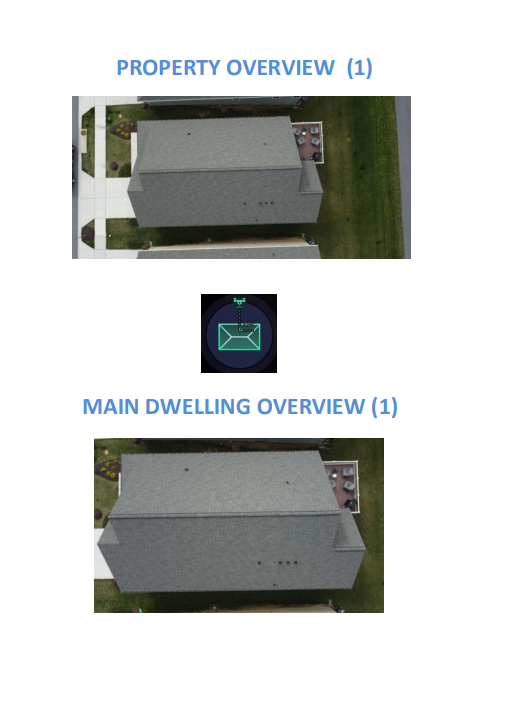

1. Property And Main Dwelling Overview

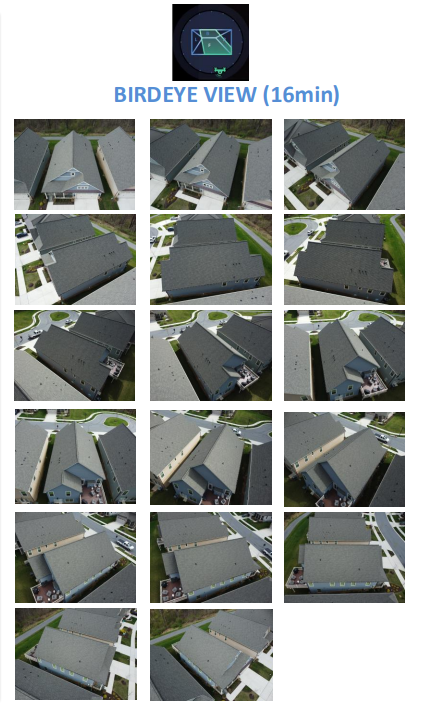

2. BIRD EYE View

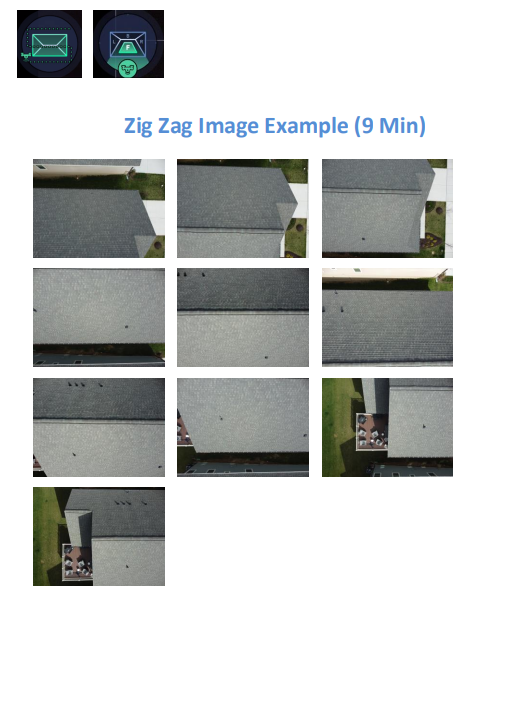

3. Zig Zag Image Example (9 Min)

4. Close-Up Image Example

Close-up images must be taken of the entire roof starting from the front slope and working in a counter-clockwise rotation:
Front → Right → Back → Left

---

These images serve as a reference.

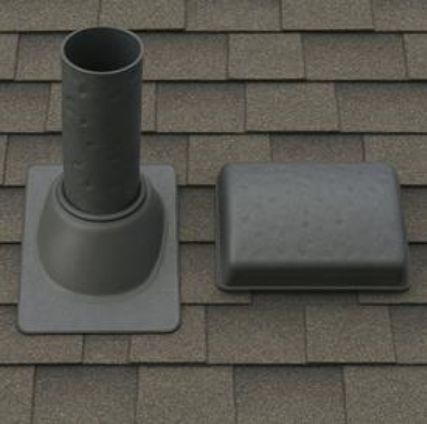

Be sure to capture close-up images of the entire roof, as well as all components such as pipe jacks, vents, etc.

As you transition between slopes, adjust the drone’s gimbal to remain perpendicular to each slope’s pitch to ensure consistent and accurate image capture.

---

Slate, Metal, Tile, Wood shakes
Because roofing materials can vary, when encountering this type of material, please capture an image no smaller than 5' × 5' and no larger than 8' × 8'.

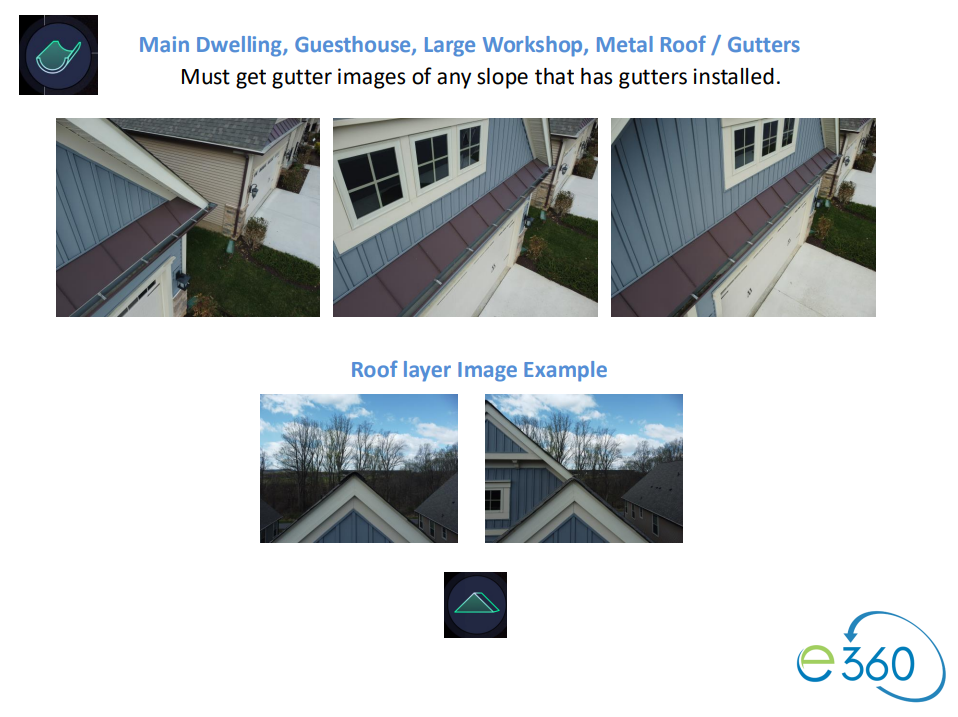

5. Main Dwelling, Guesthouse, Large Workshop, Metal Roof / Gutters
