# SECTION 13: Drone/Roof Images
# 1. Property and Main Dwelling Overviews
PROPERTY OVERVIEW (1) · MAIN DWELLING OVERVIEW (1) · BIRDEYE VIEW (16+)
# 2. Zig Zag Image Example (9+) and Close-Up Image Example
Close-up images must be taken of the entire roof starting from the front slope and working in a counter-clockwise rotation Front → Right → Back → Left.
These images serve as a reference. Be sure to capture close-up images of the entire roof, as well as all components such as pipe jacks, vents, etc.
As you transition between slopes, adjust the drone's gimbal to remain perpendicular to each slope's pitch to ensure consistent and accurate image capture.
Slate, Metal, Tile, Wood shakes
Because roofing materials can vary, when encountering this type of material, please capture an image no smaller than 5' x 5' and no larger than 8' x 8' area.

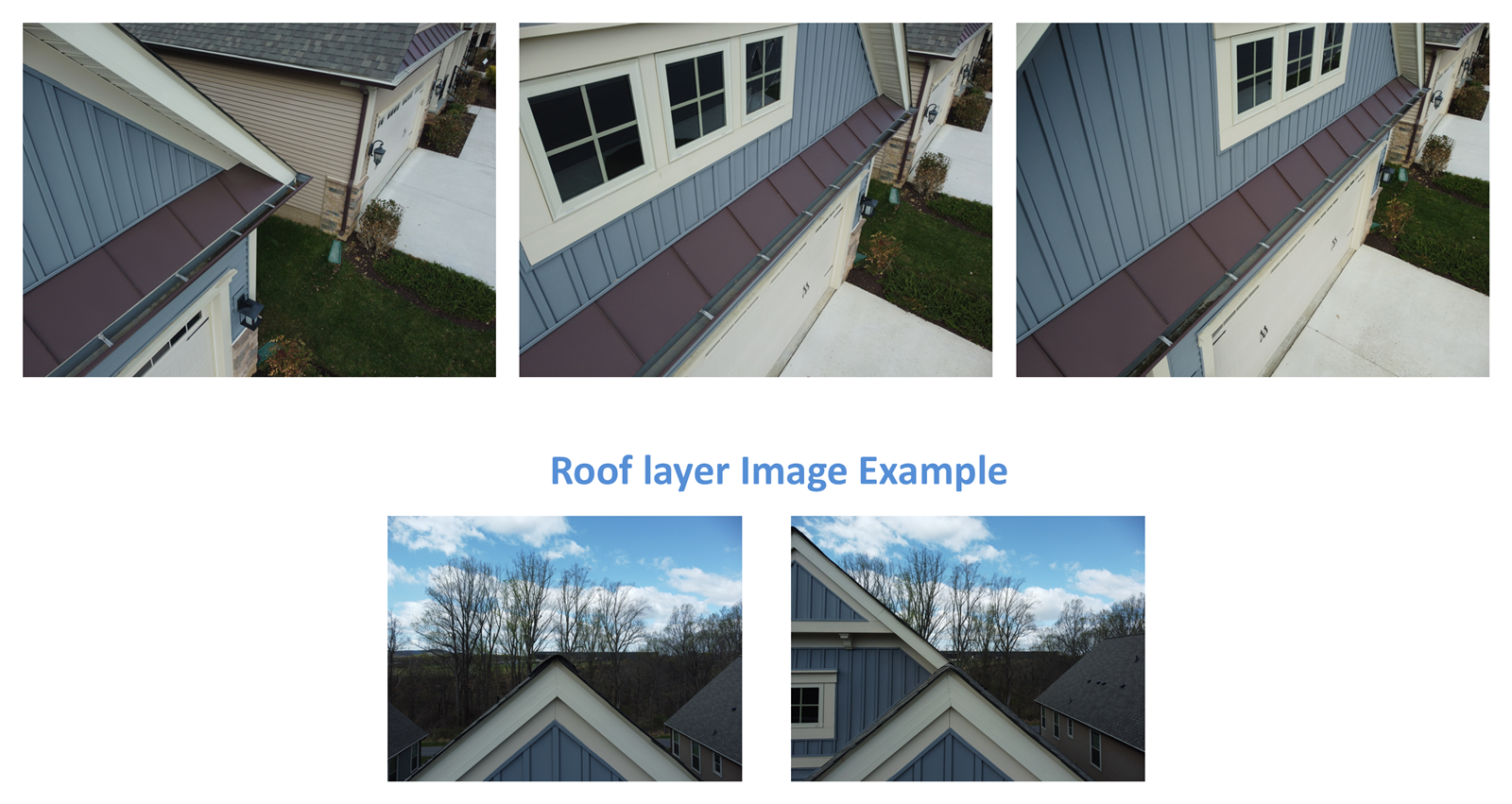

# 3. Roof Layers and Gutters
Main Dwelling, Guesthouse, Large Workshop, Metal Roof / Gutters · Roof layer Image Example
Must get gutter images of any slope that has gutters installed.
